ProSource

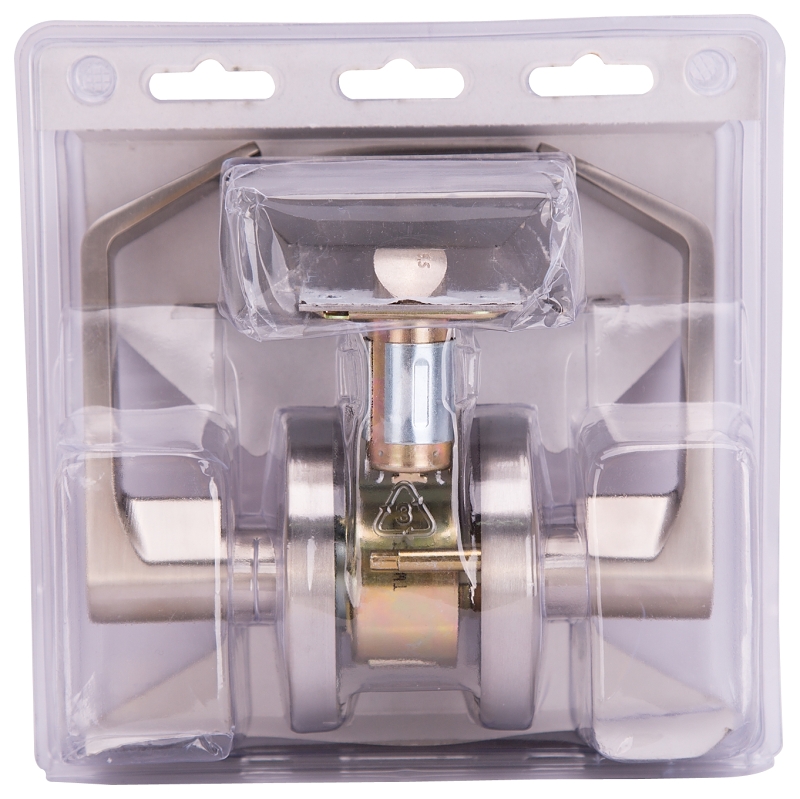

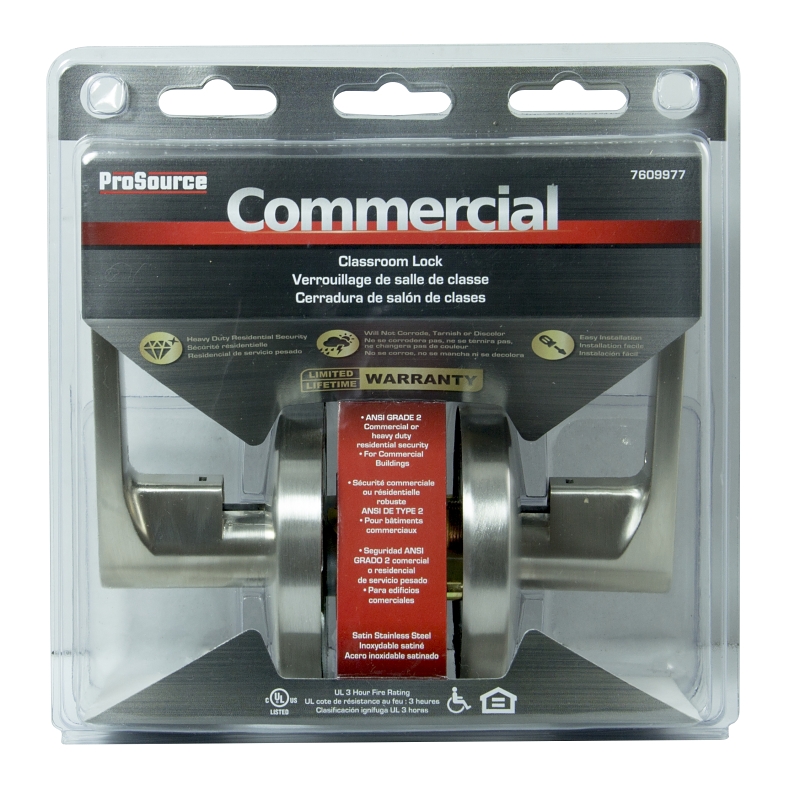

ProSource Y368CV-PS Classroom Lever, 2 Grade, Stainless Steel, Stainless Steel, SC1 Keyway, Different Key, Commercial
- Backset Type: Fixed
- Bolt Throw Size: 12.5 mm
- Commercial/Residential: Commercial
- Cross Bore Diameter: 2-1/8 in
- Cylinder Type: 6-Pin
- Model #: Y368CV-PS
- UPC #: 045734657007
- SKU: 7609977
Your shopping list will be used for pickup in-store
Product Details
ProSource Classroom Lever, Security Grade: 2, Stainless Steel, Stainless Steel, Keyway Type: SC1, Key Type: Different, Commercial/Residential: Commercial, Door Handing: Reversible, Cylinder Type: 6-Pin, Number of Cylinders: 1, Door Thickness: 1-3/8 to 1-13/16 in, Backset Type: Fixed, Edge Bore Diameter: 1 in, Cross Bore Diameter: 2-1/8 in, Strike Type: T-Style, Strike Size: 70 x 39.75 mm, Throw Length: 12.5 mm, Projection Size: 2-1/2 in, Faceplate Size: 1-1/8 x 2-1/4 in, Includes: (2) KeysKey Features
- Schlage SC1 six-pin keyway
- The backset type is fixed
- The backset size is 2-3/4 in
- Made of metal
Item Specifications
| Backset Type | Fixed |
|---|---|
| Bolt Throw Size | 12.5 mm |
| Commercial/Residential | Commercial |
| Cross Bore Diameter | 2-1/8 in |
| Cylinder Type | 6-Pin |
| Door Handing | Reversible |
| Door Thickness | 1-3/8 to 1-13/16 in |
| Edge Bore Diameter | 1 in |
| Faceplate Size | 1-1/8 x 2-1/4 in |
| Finish | Stainless Steel |
| Includes | (2) Keys |
|---|---|
| Key Type | Different |
| Keyway Type | SC1 |
| Material | Stainless Steel |
| Number of Cylinders | 1 |
| Projection Size | 2-1/2 in |
| Security Grade | 2 |
| Strike Size | 70 x 39.75 mm |
| Strike Type | T-Style |
| Throw Length | 12.5 mm |
MORE DETAILS:
- Application: For commercial applications
